HTTP Basics

18 Jan 2016

In this post we’ll cover basic concepts of the HTTP protocol, and its variants, including the HTTP over TSL, commonly known as HTTPS. We’ll also talk about related features such as cookies and the next generation of HTTP.

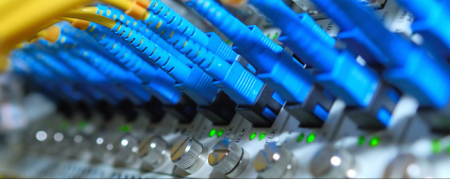

internet

Introduction

HTTP is the acronym for Hypertext Transfer Protocol [1]. It’s a application level protocol, intended to be used between a client and a server. A common use case is a web browser acting as a client and a remote machine providing the contents of a given website acting as the server.

It assumes a reliable underlying transfer level protocol, and this is often TCP (we talked a bit about transport protocols in a previous post).

The original version of HTTP was defined in RFC1945 in 96. The current most popular implementation is of HTTP/1.1 (RFC2068, in 97). The HTTP/2.0 spec was recently finished (RFC7540 in 2015).

The protocol consists of two parts: first, the client sends a request to a server. Then, the server sends a response back.

HTTP Request

When a client want to connect to a server, it create a request message, that has a common format:

GET /index.html HTTP/1.1
Host: www.example.com

There are a specific commands a requester can send, defined in the HTTP/1.1 specification, including:

GET and POST are the most common commands in the context of Browser/Server communication. Methods such as PUT and DELETE can be seen in applications like Elasticsearch.

We can test some of these commands using the curl command line:

> curl -X GET https://www.google.com/
...
HTML contents
...

If we try TRACE, we get an error back (405):

> curl -X TRACE https://www.google.com/
...
Error 405 (Method Not Allowed)!!1

HTTP Response

After the server processes the request, it will return a response. The first line of the response it the status code and a textual reason phrase (note that this phrase are not standard, so clients should not rely on error messages).

The most common response header is

HTTP/1.1 200 OK

and

HTTP/1.1 404 File not found

The HTTP specification defines 5 groups of response status code, based on the response nature. The status code always has 3 digits, and the first digit represents the group:

And example response, for example [1]:

Date: Mon, 23 May 2005 22:38:34 GMT
Server: Apache/1.3.3.7 (Unix) (Red-Hat/Linux)
Last-Modified: Wed, 08 Jan 2003 23:11:55 GMT
ETag: "3f80f-1b6-3e1cb03b"
Content-Type: text/html; charset=UTF-8
Content-Length: 138
Accept-Ranges: bytes
Connection: close



  An Example Page


  Hello World, this is a very simple HTML document.

The first lines represent the response header. After a blank line follows the response.

HTTPS - HTTP over TSL

HTTPS was specified over SSL (Secure Sockets Layer), but SSL has security flaws, and have been since evolved to a more robust layer, TSL, which stands for Transport Layer Security.

Image credits: www.perspecsys.com
Image credits: www.perspecsys.com

Motivation. One problem with HTTP is that the request/response are exchanged over an unsecured network. It’s possible for an attacker to intercept an user connection with the server and to have access to both request and responses. This is a common form of attack known at Man-in-the-middle attack.

By adding an encryption layer, the entire HTTP message can be encrypted using TSL. TSL idea is the following [6]:

The advantage of this above only using the public key of the server to encrypt the message (like a plain RSA implementation), associating this to the session adds forward secrecy. This is to add some security to the scenario in which someone saves all the encrypted messages and some day manages to steal the server’s private key. In that case, it would be able to decrypt all the stored messages, but by generating an unique key every time, the attacker would need to also store the initial message containing the session key and associate the session key to the message.

The digital certificate is issued by a Certificate Authority (CA), a common trusted third party such as Symantec, which will attest the site integrity. The structure of the certificate is defined by the X.509 standard.

Browsers already ship with a pre-installed list of trusted CAs, so when receiving a certificate from a trusted CA, the browser can look at the CA signature (which was encrypted with the CA private key) and decrypt it using the CA public key. The decrypted signature should match the information the browser has.

For untrusted CAs, it’s up to the user to decide whether to trust a particular CA.

In Chrome, to inspect the Certificates, we can go to Settings… > HTTPS/SSL > Manage Certificates… (on Mac it will open the Keychan application). In the Keychan app, look for System Roots and the Certificates Categories, we can see a list of trusted CAs, like the one below, form VeriSign:

Sample Certificate
Sample Certificate

Let’s Encrypt. In an ideal world, all HTTP connections would be secure, so no one could eavesdrop while you’re browsing the web. Several companies like Google encourage its use, by having Chrome force the use of HTTPS whenever possible and also boosting the rank of websites with https support.

One major obstacle for this is having to rely on a non-free and complicated procedure with third-party CAs. To address this problem, recently the Internet Security Research Group (ISRG) proposed a new way to issue certificates for free.

The key is how to simplify the process of proving a given agent owns a given domain, for example https://www.example.com. Let’s encrypt will ask the agent to perform an action only the domain owner can do, for example putting a file under it (say, https://www.example.com/file.txt)) [7].

LE will then do a regular HTTPS request to get that file. Note that LE doesn’t have a trusted certificate for that domain, but it doesn’t need to this initial stage.

In addition, LE needs the agent’s public key and needs to validate it. This is simple: LE gets the agent’s public key, generates a random string and encrypts it with the agent’s public key. The agent will be able to decrypt the message using its own private key and then it encrypts it again using LE’s public key. It finally sends it back, and LE can also decrypt it. If the resulting key is the same it sent originally, it will associate the agent public key to the domain.

Now LE can issue certificates to that particular domain. Major browsers already trust LE as a Certificate Authority, so this require no extra work from the agent.

HTTP Cookies

One of the characteristics of HTTP requests is that they’re stateless. That means that in theory an HTTP request is independent from the previous HTTP request. One way to simulate a state is having the browser and server pass (meta)data around carrying state information. This extra data is basically implemented as an HTTP cookie.

The term cookie came from magic cookie (another programming term), which came from fortune cookie
The term cookie came from magic cookie (another programming term), which came from fortune cookie

Cookies are part of the HTTP protocol. A server can send a cookie to the browser in the HTTP response’s header:

HTTP/1.0 200 OK
Set-Cookie: lu=Rg3vHJZnehYLjVg7qi3bZjzg; Expires=Tue, 15-Jan-2013 21:47:38 GMT; Path=/; Domain=.example.com; HttpOnly
Set-Cookie: made_write_conn=1295214458; Path=/; Domain=.example.com
Set-Cookie: reg_fb_gate=deleted; Expires=Thu, 01-Jan-1970 00:00:01 GMT; Path=/; Domain=.example.com; HttpOnly

In the example above, it’s sending three cookies back. The first part of the cookie is an expression =. The others are attributes like expiration date and path + domain. Path and domain are used to let the client know it should use these cookies for requests with the URLs matching that path and domain.

Once the cookie is set on the client, subsequent requests to the server will contain the cookie information. For example:

GET /spec.html HTTP/1.1
Host: www.example.com
Cookie: made_write_conn=1295214458; reg_fb_gate=deleted
...

Types. Cookies can be named based on their characteristics:

This is a bit controversial. In Chrome there is an option to disallow third-party cookies.

Settings > Show Advanced Settings… > Content Settings… > Block third-party cookies and site data

A lot of websites use cookies for creating authenticated sessions. It’s even more important to only use HTTPS connections in this scenario, because cookies are sent as plain text in the HTTP request header. There are many attacks that can be performed exploiting cookies:

Man-in-the-middle attacks. that can be used in a LAN network or public Wi-Fi network to hijack a cookie, by intercepting the HTTP requests and obtaining the cookies, as explained in detail here.

DNS Poisoning. Since browsers use the Domain/Path to decide whether to send a cookie in a request, attackers can hack the DNS server to make the domain specified in the cookie point to the attacker server, which would send the cookies to the attacker. If it’s an HTTPS connection, the request wouldn’t go through because the attacker won’t have a valid certificate.

Cross-site Scripting. The server might contain HTML poisoned with malicious JavaScript code which has access to cookies, and could send those as plain text to an attacker server:

<a href="#">Click here!</a>

This would work even if the site we got the HTML from had a secure connection. This attack can be prevented if the cookies containing sensitive information have the httpOnly property.

SPDY and HTTP/2

SPDY is a protocol created by Google aiming to improve the performance of HTTP requests. The overview provided in their draft is very descriptive:

One of the bottlenecks of HTTP implementations is that HTTP relies on multiple connections for concurrency. This causes several problems, including additional round trips for connection setup, slow-start delays, and connection rationing by the client, where it tries to avoid opening too many connections to any single server. HTTP pipelining helps some, but only achieves partial multiplexing.

SPDY adds a framing layer for multiplexing multiple, concurrent streams across a single TCP connection (or any reliable transport stream). The framing layer is optimized for HTTP-like request-response streams, such that applications which run over HTTP today can work over SPDY with little or no change on behalf of the web application writer.

The SPDY session offers four improvements over HTTP:

  • Multiplexed requests: There is no limit to the number of requests that can be issued concurrently over a single SPDY connection.

  • Prioritized requests: Clients can request certain resources to be delivered first. This avoids the problem of congesting the network channel with non-critical resources when a high-priority request is pending.

  • Compressed headers: Clients today send a significant amount of redundant data in the form of HTTP headers. Because a single web page may require 50 or 100 subrequests, this data is significant.

  • Server pushed streams: Server Push enables content to be pushed from servers to clients without a request.

HTTP/2 is inspired on SPDY ideas. The majority of the browsers already support the HTTP/2 protocol, though only a bit over 6% of the websites use it as of January 2016.

Conclusion

While reading the material for this post, we’ve learned a lot of things, including

Regarding encryption algorithms, I was familiar with RSA, and heard about elliptic curve encryption, though I have no idea how they work. I’m interested in learning more about the elliptic curve Diffie-Hellman algorithm.

There also several topics we didn’t cover like HTTP pipeline or general web attacks, such as heartbleed. This Wikipedia list is an interesting follow-up reading.

Overall it was very interesting to read about internet security.
